Name the scope
Specify whether the result covers a selected body, a part or all resolved components. An assembly total that omits missing references should be labelled partial or withheld.
CADProps · CAD tools
CAD Volume Calculator: Measure STEP Solid Volume
Calculate solid volume from STEP B-Rep geometry. Check model validity, source units and assembly scope before using or exporting the result.
No account required
Temporary workspaceCAD processingBefore you use the result
Know what you are looking at.
Check the enclosed volume of the intended bodies, not just the overall envelope. Keep an unavailable result distinct from zero, and state the geometry and units used.
Distinguish unavailable from zero

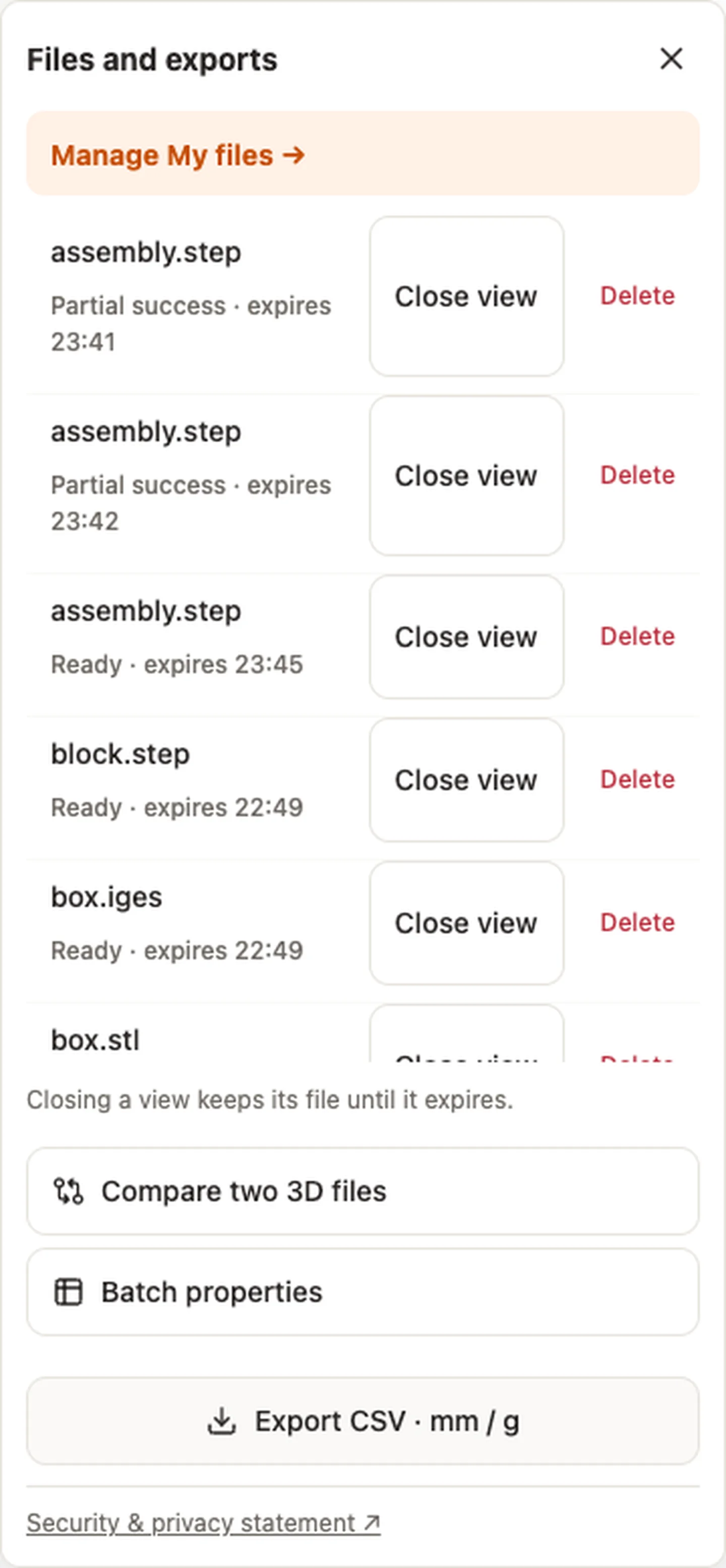

A failed or unsupported calculation is not a numerical zero. Keep the reason next to the value and in every exported report. Do not substitute the bounding-box volume.
Record the method
CAD-geometry integration and mesh-based estimation are different calculation paths. Keep the method, geometry validity and unit conversions visible. This page calculates volume from your STEP B-Rep geometry and leaves it unavailable when the model is not a valid closed solid.
A reproducible example

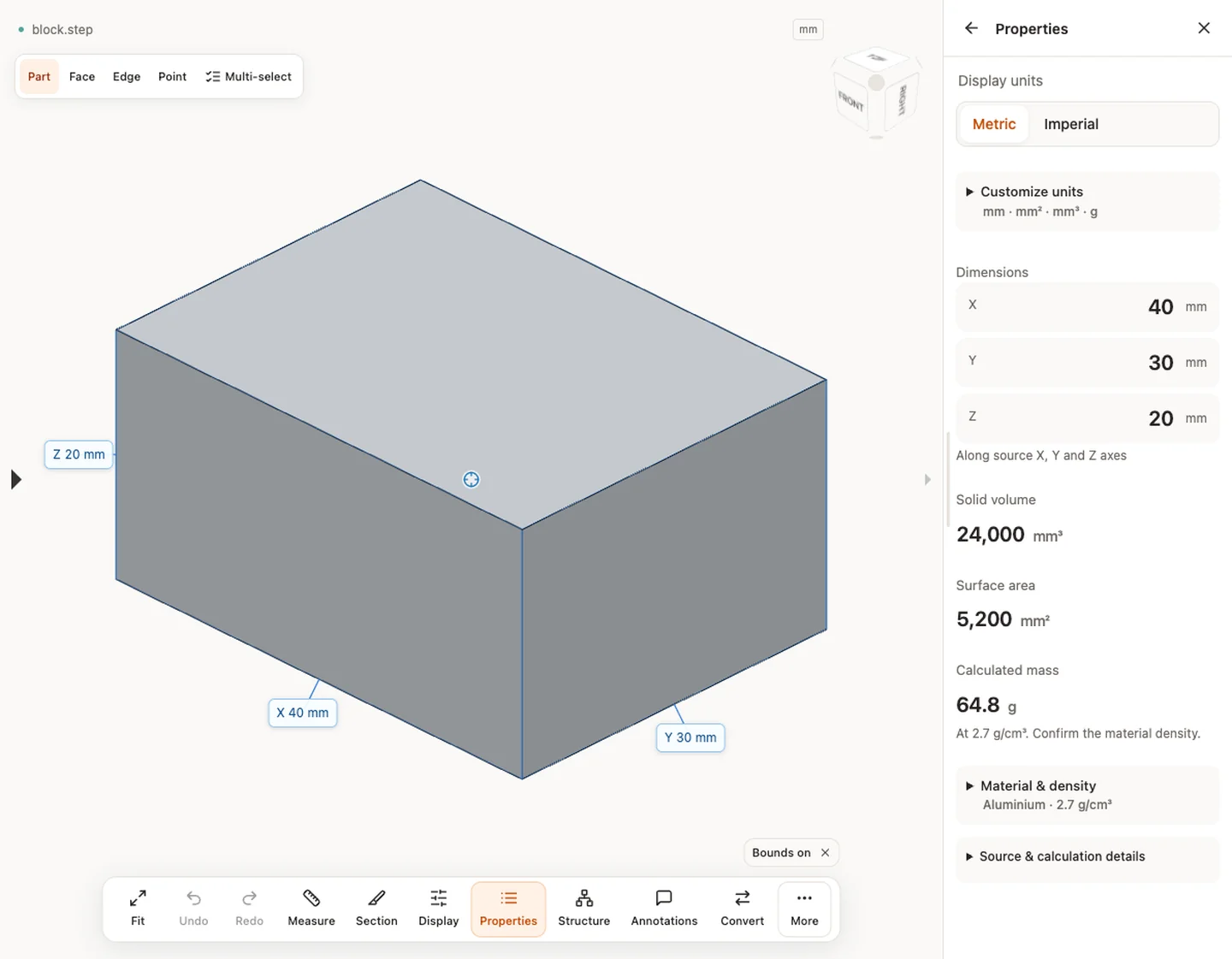

Generated STEP block: 20 × 30 × 40 mm, surface area 5,200 mm² and volume 24,000 mm³. At density 2.7 g/cm³ the calculated mass is 64.8 g. These values describe the synthetic block, not the default bearing sample.
Repository-generated samples are synthetic test models. Verify your own model's units and geometry before using results.
Questions about this task
Know the limits.
Do overlaps count twice?
Assembly properties sum instances. Overlapping material is not subtracted from ordinary property totals.
Is mesh volume exact?
Closed mesh volume is approximate. Open or inconsistently oriented meshes do not receive a usable volume.
Are my files uploaded?
Selecting a file starts temporary server processing. Access is limited to your guest session. The entry shows configured retention and files can be deleted earlier.
