Open STEP Surface: Area Available, Volume Unavailable

Use a known planar STEP face to distinguish measurable surface area from unavailable solid volume.

On this page
Open STEP Surface: Area Available, Volume Unavailable — conceptual illustration
CADProps engineering guide · Conceptual illustration

This is one planar face, not a closed solid. A 20 × 30 mm face has 600 mm² area. Its enclosed solid volume is unavailable; zero would misrepresent the result.

Open the matching tool and download open-surface.step.

Reproduce the check

  1. Download the unchanged public sample. It is synthetic geometry generated in the repository, not a customer model.
  2. Open it in CADProps and wait for the model canvas.
  3. Open Properties, confirm units, included components and warnings.
  4. Compare the displayed values with the analytical expectations below.
  5. In the Properties panel, select Download properties CSV, then open the downloaded file. Keep unavailable cells separate from zero.

Expected and observed results

Property Analytical expectation Observed CSV
X (mm) 20 20
Y (mm) 30 30
A (mm²) 600 600
V (mm³) Unavailable (empty CSV cell) Unavailable (empty CSV cell)

The observed values and original CSV are recorded in the verification record. This record identifies the test environment and source revision. It describes a local verification run, not a production release.

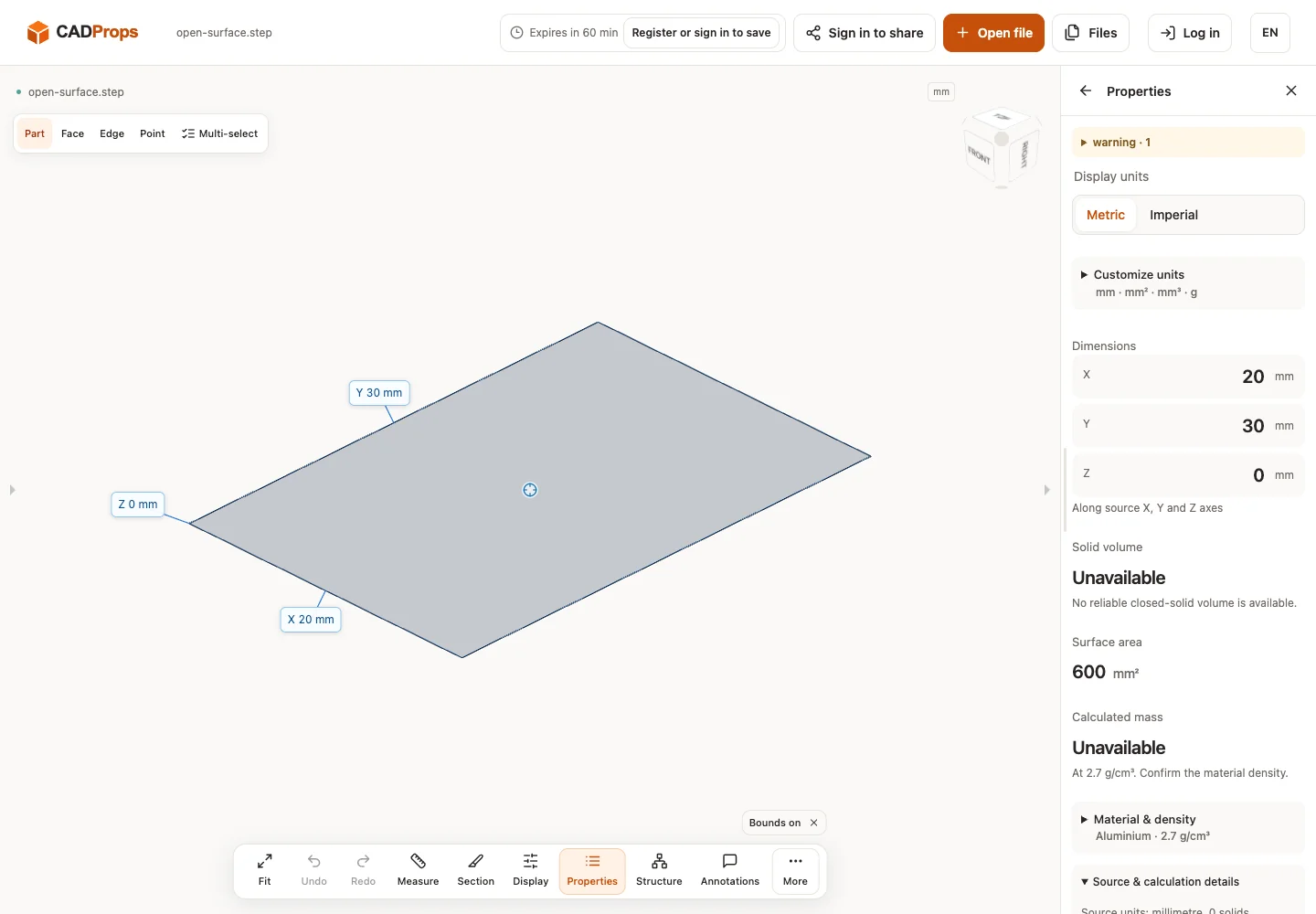

CADProps properties for the public open-surface.step sample
CADProps local verification; the screenshot shows the actual English interface.

Download the observed CSV.

Why adding a thickness is a different model

This sample deliberately contains a face with no modeled material thickness. A shaded rectangle does not create a solid. If the task is estimating a sheet's mass, a thickness and material specification must come from an engineering requirement and be modeled or calculated explicitly.

For example, an assumed uniform 2 mm thickness over the 600 mm² rectangle would describe a different hypothetical solid with 1,200 mm³ of volume. That arithmetic is not a measured volume of the supplied surface, and CADProps does not silently extrude it to fill the missing property.

In the downloaded CSV, distinguish an empty volume cell from numeric zero. A spreadsheet average or total can conceal blanks, so keep a status column when combining this result with solid parts. Do not obtain “complete” mass totals by treating the open surface as a zero-mass component.

If a supplier expected a solid, request the intended thickness or a complete closed-solid export. If the surface itself is the correct deliverable, its area and extents remain useful. The absence of solid volume is then a representation boundary, not a reason to repair the model blindly.

Verification scope

Sample SHA-256: 3b9cfe6e949f4ab6b11716cc6d566a908d2077acfcfa5bc08fba18e5a677029c. Generated by scripts/make_samples.py; source revision 27af64443aab95059aefa76ad27cefd267ebfbc4. Verified on 2026-10-01 with the local isolated CADProps server and Chromium; see the linked record for environment details. Numerical comparison allows 0.01 mm for extents, 0.1 mm² for area and 0.1 mm³ for volume of these simple fixtures; these are test checks, not manufacturing tolerances.

CADProps processes files on the server. Inspect source units and warnings before relying on properties. Missing components describe only loaded scope; volume requires valid closed geometry. Ordinary assembly totals sum occurrences and can double-count overlapping material; they do not compute a Boolean union. Mass requires a density you confirm. Accuracy and privacy explain the limits.

Try the check or follow the measurement workflow.
