STEP Inch Units: A Reproducible Dimension Check

Verify an inch-declared STEP block against known millimetre dimensions without rescaling the model.

On this page
STEP Inch Units: A Reproducible Dimension Check — conceptual illustration
CADProps engineering guide · Conceptual illustration

The STEP declares inches. Its physical geometry should normalize to 25.4 × 50.8 × 76.2 mm; displaying another unit must not resize it.

Open the matching tool and download inch-block.step.

Reproduce the check

  1. Download the unchanged public sample. It is synthetic geometry generated in the repository, not a customer model.
  2. Open it in CADProps and wait for the model canvas.
  3. Open Properties, confirm units, included components and warnings.
  4. Compare the displayed values with the analytical expectations below.
  5. Open Files → Export CSV · mm / g, then reopen the downloaded properties CSV. Keep unavailable cells separate from zero.

Expected and observed results

Property Analytical expectation Observed CSV
X (mm) 25.4 25.4
Y (mm) 50.8 50.8
Z (mm) 76.2 76.2

The observed values and original CSV are recorded in the verification record. This record identifies the test environment and source revision. It describes a local verification run, not a production release.

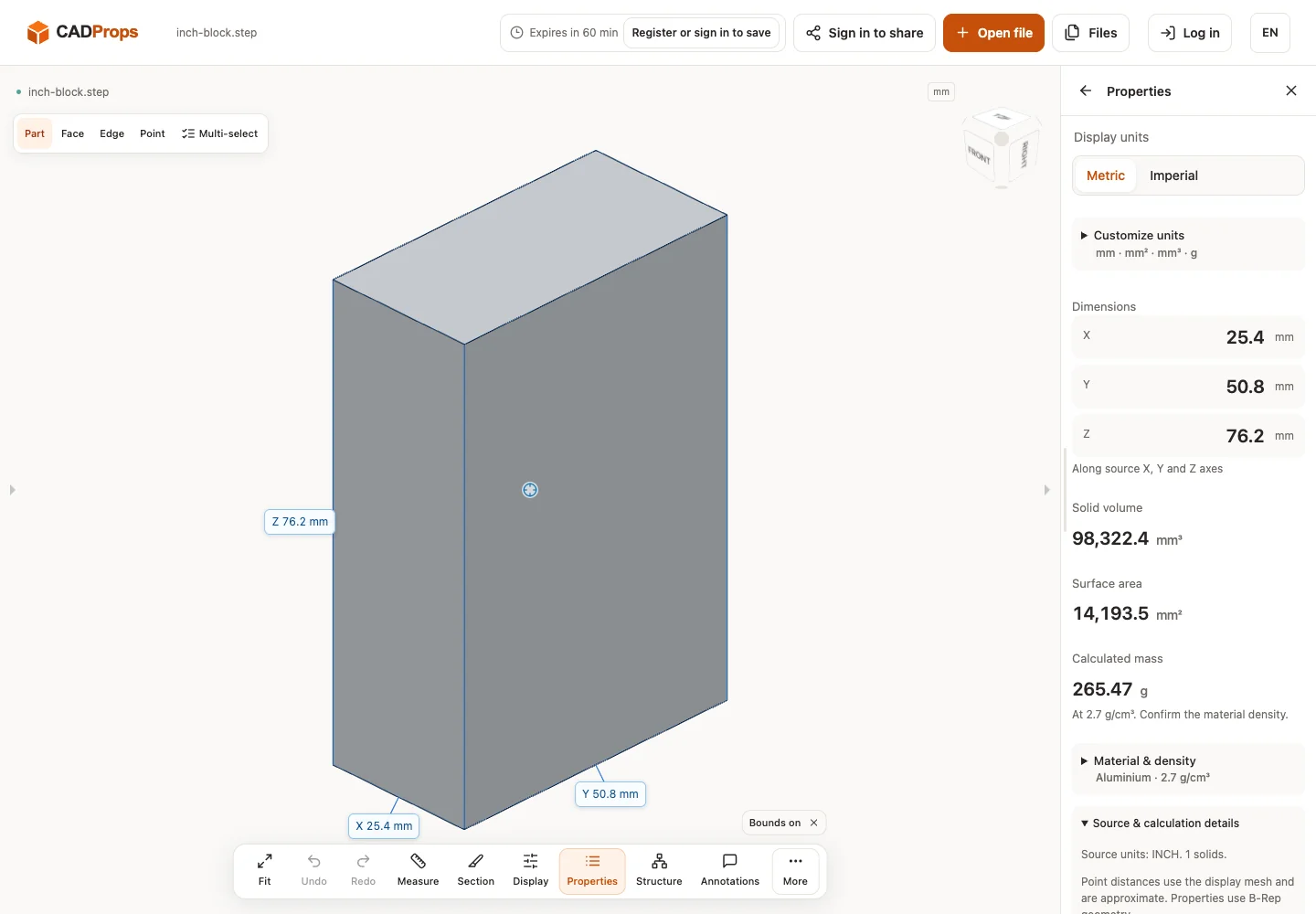

CADProps properties for the public inch-block.step sample
CADProps local verification; the screenshot shows the actual English interface.

Download the observed CSV.

Explain the conversion before correcting a file

The model uses 1, 2 and 3 inches along its source axes. Multiplying each length by 25.4 gives the millimetre values in the table. The reader's normalization is intended to preserve physical size, not enlarge the part. Switching a verified 25.4 mm display to inches should express that same length as 1 inch.

If your reproduction displays 1 × 2 × 3 mm instead, inspect the source-unit declaration and the selected file before applying a scale factor. If the values are multiplied by 25.4 again, ask whether a previous conversion already normalized the coordinates. Keep the original sample unchanged while diagnosing the mismatch.

Compare the corresponding source-axis extents rather than the longest diagonal or a camera-dependent screen width. Reopen the CSV and read the millimetre column names before comparing numbers with another application using inches. This case establishes unit handling for one simple solid; it does not validate local feature measurements, all STEP protocols or a manufacturing tolerance.

Verification scope

Sample SHA-256: 42aba73b93cce5b84fdb165da0dfda9558e9a1c567654f0f2fad0de678c98fdc. Generated by scripts/make_samples.py; source revision 27af64443aab95059aefa76ad27cefd267ebfbc4. Verified on 2026-10-01 with the local isolated CADProps server and Chromium; see the linked record for environment details. Numerical comparison allows 0.01 mm for extents, 0.1 mm² for area and 0.1 mm³ for volume of these simple fixtures; these are test checks, not manufacturing tolerances.

CADProps processes files on the server. Inspect source units and warnings before relying on properties. Missing components describe only loaded scope; volume requires valid closed geometry. Ordinary assembly totals sum occurrences and can double-count overlapping material; they do not compute a Boolean union. Mass requires a density you confirm. Accuracy and privacy explain the limits.

Try the check or follow the measurement workflow.
